If you have spent any time managing energy across commercial facilities, you already know the truth: deploying a reliable commercial energy monitoring system gets complicated fast. The hard part is never installing the meters — it is getting all that data into one place your operations team can actually trust and use. The ADM Director solves exactly that: it is a self-hosted data acquisition and visualization platform that pulls any Modbus, MQTT or eGauge meter into one clean, on-premises portal, lets you visualize and bill on it, and charges no monthly cloud fees.
The ADM Director industrial gateway: Ethernet, Wi-Fi, integrated cellular, and four RS485/RS232 serial ports for mixed-meter sites.
The Reality of the Field: Data Friction
Walk into a site and you find five eGauge meters, each with its own login. Another site mixes an eGauge, an Elkor MCM, a few ADM meters, and a handful of other devices all speaking completely different protocols. The meters are installed and working — but the data is scattered across half a dozen disconnected workflows.
In the past, getting to actionable, real-time monitoring meant one of two bad options:
- Pay steep monthly subscription fees for cloud-based energy monitoring software, or
- Spend hours manually exporting CSV files and stitching them together in Excel.
Over the last year we worked with client after client frustrated by this exact problem. They had multiple meters that simply refused to communicate with each other. Worse, many facility managers did not want their operational data forced onto someone else’s cloud — and they could not justify the ongoing subscription drag just to maintain a basic building energy monitoring system.
The system that delivers maximum visibility should not also force you to rent your own data back, month after month.
Building the Solution: The ADM Director
We knew there had to be a better way to handle local data without sacrificing visibility — a kind of universal translator. A local hub that takes different brands and protocols and presents them in one unified dashboard, entirely on-premises.
The result of that year of development is the ADM Director.
It is a self-hosted data acquisition and visualization platform that lets you own your power and energy data outright, with no monthly cloud fees. It eliminates data friction by consolidating multiple meters, brands, and supported communication paths into one simple, self-hosted portal.
What It Actually Does
Instead of logging into five different systems, the ADM Director integrates any Modbus energy meter (Modbus RTU or TCP), MQTT, or eGauge device into a clean, browser-based portal. It runs fully on-premises — an internet connection is completely optional — and your data stays securely inside your local network.

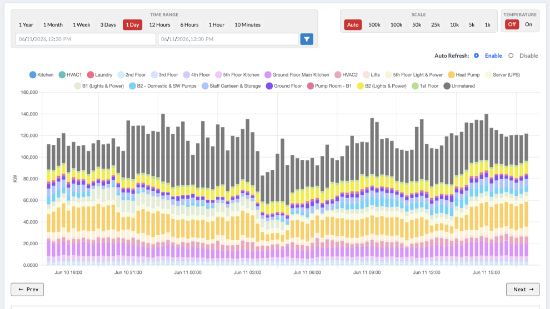

The portal at work: a 24-hour load profile broken down by metered circuit and zone, with selectable time ranges from 10 minutes to a full year.
From one self-hosted dashboard, your team can:
- Visualize consumption graphically across multiple chart types simultaneously — line, bar, and pie — with up to four views side by side.
- Overlay outside temperature, retrieved automatically for your installation location, to correlate weather with electrical demand.
- Manage electrical submetering with built-in sub-metering and tenant billing reports.
- Export to CSV or Excel for any time range.
- Store data locally for up to 30 years.

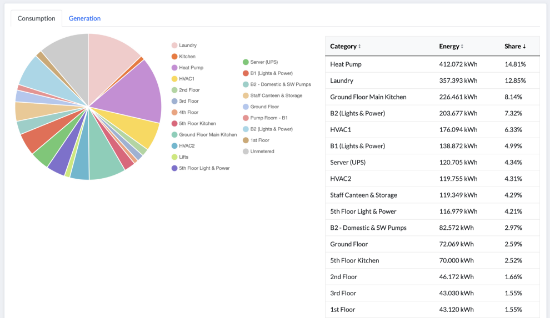

Instant consumption broken down per circuit — heat pump, laundry, kitchens, floors — with exact kWh and percent share.
Submetering and tenant billing, built in
Collecting data is only half the job. The Director turns it into bills directly: create a bill from one or more connected meters, give each its own pricing structure or share a single one, and hand a tenant a clean, itemized statement.

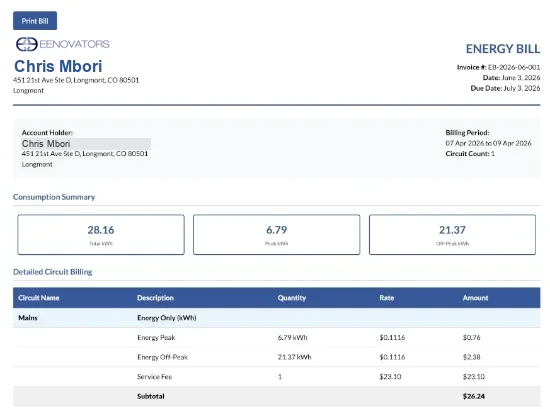

An invoice generated straight from metered data — peak / off-peak split, per-circuit detail, and a service fee, ready to send.
One login for every site
When a Director is allowed to reach the internet, it appears in the optional Aim Dynamics fleet portal. From a single login you see every Director you own, check online/offline status at a glance, and open any device’s local portal in one click — no individual passwords to remember.

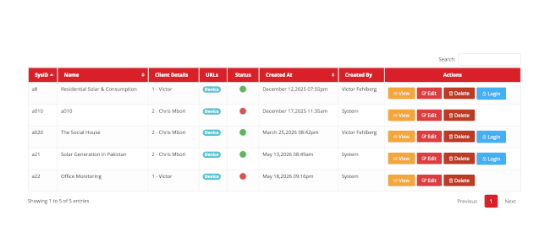

The optional fleet portal: every site you own in one list, one click into any local portal.
Configurations for the Real World
We designed the ADM Director to be practical for actual field installs. It is available as a standalone unit for retrofitting existing networks, and as pre-wired, UL508A-certified enclosures that make single-point installation seamless. Depending on your site, you can deploy:

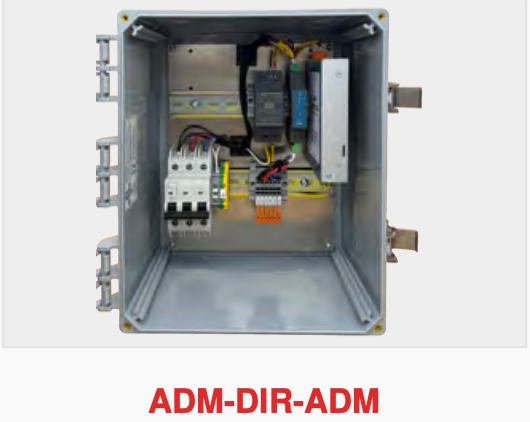

ADM-DIR-ADM
A pre-wired enclosure pairing the ADM Director with an Aim Dynamics ADM three-phase meter — a complete, single-point monitoring solution.

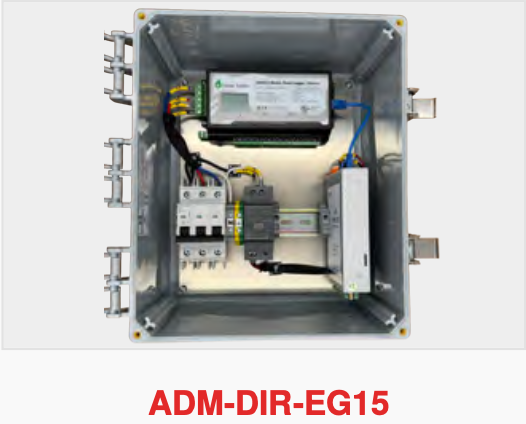

ADM-DIR-EG15
A pre-wired enclosure pairing the ADM Director with an eGauge EG4015 meter — use the Director’s portal as a unified front-end for one or many eGauges.

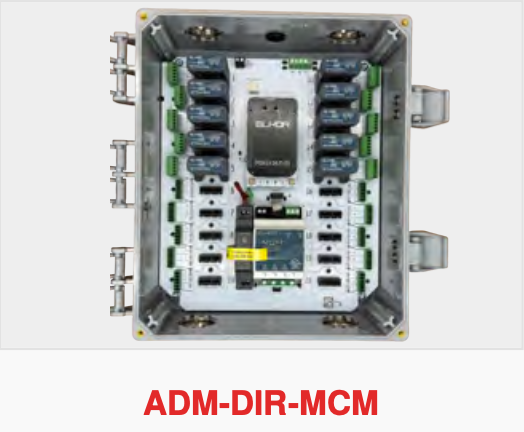

ADM-DIR-MCM
A pre-wired enclosure pairing the ADM Director with an Elkor MCM multi-circuit meter — ideal for high-channel-count metering with consolidated visualization.
Each enclosure is a 12” × 10” × 6” UL508A-certified unit, wired for either 120/208 V or 277/480 V. The standalone ADM-DIR is the right call when meters are already in place and you just need on-premises visualization, submetering billing, and export — with no monthly cloud fees.
Stop Renting Your Data
Collecting data is only half the job. The other half is turning it into an actionable decision tool without getting bled dry by recurring software costs. Your energy data should not be scattered across disconnected workflows, and you should not have to pay a monthly ransom to view your own consumption.
If you are dealing with mixed-meter sites — or you just want a robust, subscription-free way to visualize and bill your facility’s energy use — it is time to bring your meters together into one local view.
Field note
The clients who finally relaxed weren’t the ones who bought the fanciest meters — they were the ones who stopped logging into five dashboards to answer one question. On mixed sites the real cost was never the hardware; it was the half-hour every morning spent exporting CSVs and reconciling them in a spreadsheet that nobody fully trusted by Friday. Pulling eGauge, Elkor and ADM meters behind one local portal didn’t add a feature so much as remove a chore — and removing the monthly cloud fee turned “nice to have” into an easy yes for facility managers who are tired of renting access to numbers they already own. If your data lives on-premises and bills itself, monitoring stops being a subscription and starts being an asset.
Sources
- ADM Director — self-hosted data acquisition and visualization platform (Aim Dynamics) — product page, specifications, configurations, and order codes.
- ADM Director datasheet, Rev. A (Aim Dynamics) — hardware features, portal/visualization, billing, and fleet portal.
- eGauge Systems — eGauge energy meters and EG4015 reference.
- Elkor Technologies — MCM multi-circuit meter — high-channel-count metering reference.
- Modbus Organization — Modbus RTU / TCP protocol reference.
Ready to own your energy data?
Get the full technical datasheet, explore every supported integration, and pick the right configuration for your facility:
→ Get the Datasheet & Purchase the ADM Director Here
Self-hosted. No monthly cloud fees. Every meter, one portal.
Frequently asked questions
What is the ADM Director?
Does the ADM Director require an internet connection or a monthly subscription?
Which meters and devices does it support?
Can the ADM Director handle tenant submetering and billing?
How is my data kept private if there are no cloud fees?
What's the difference between the standalone unit and the pre-wired enclosures?
Can I see all my sites in one place?
Chris Mbori
Founder of Eenovators Limited (East African ESCO), partnering with AIM Dynamics. Built Eagles and the ADM portal. AEE Energy Manager of the Year (Sub-Saharan Africa). 10 AEE certifications. Licensed Engineer. Field journal — hype-skeptical, field-tested.
